New motor, developed exclusively for direct-drive turntable

The TN-4D-SE uses a sleek, brushless DC motor, offering crystal-locked speed accuracy, regulated by a computer-controlled feedback circuit and achieving low wow-and-flutter levels for a direct drive turntable, especially one with such a stylish, low-profile design.

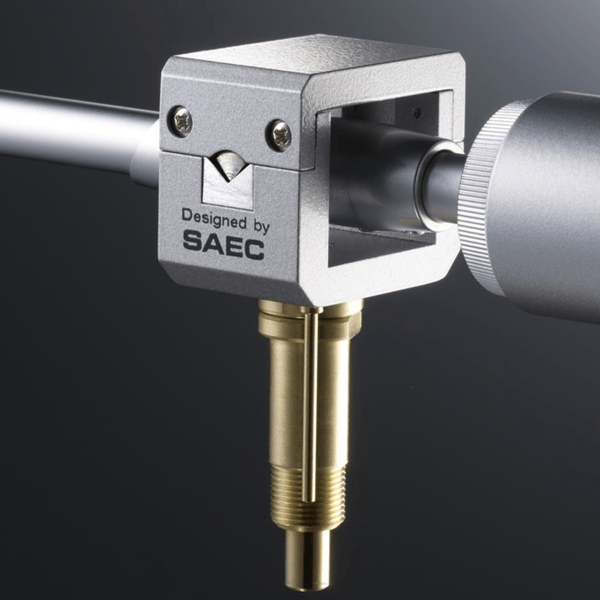

Knife-edge, pivot-point tonearm bearings

In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-4D's tonearm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements encountered by this tonearm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges/headshells, and supports a wide range of cartridge weights (from 14 - 23g)

Precision anti-skating and stylus-pressure adjustment

As you might expect, the tonearm is equipped with a counterweight, for precise stylus-pressure adjustment, and an anti-skating mechanisms

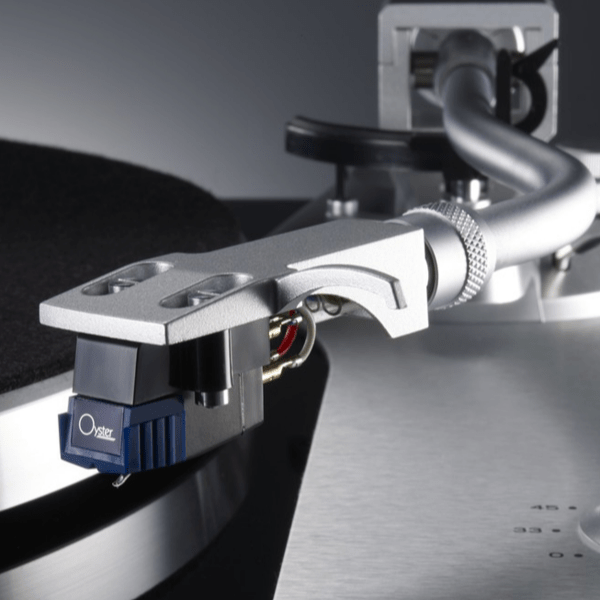

Pre-installed Oyster cartridge by SUMIKO

The TN-4D-SE comes with a well-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. Regardless of the type of music, the Oyster cartridge delivers a powerful but insightful performance

Built-in PHONO EQ amplifier supporting MM cartridges

The TN-4D-SE comes with a built-in PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system. The NJM8080 IC from New Japan Radio Corporation is employed for op-amp duties, bringing up the level of the tiny signals received via the cartridge up to LINE level strength without any loss of quality

Die-cast aluminium platter

In conjunction with the newly-developed motor, the high inertia, die-cast aluminium platter helps to achieve better speed stability

Insulating feet with excellent shock absorption

The insulating feet comprise a machined aluminium shell topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics the TN-4D-SE is very resistant to acoustic feedback

2-speed turntable for 33-⅓ and 45 rpm

The TN-4D-SE supports 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium

Features at a glance

• Direct-drive analog turntable
• Crystal-locked speed stability, thanks to a new brushless DC motor with feedback control
• Die-cast aluminium platter
• Knife-edge, pivot-point tonearm base, designed by high-end tonearm manufacturer SAEC
• Multi-layer piano black or natural walnut veneer finish
• Built-in PHONO EQ amplifier for high-quality sound (PHONO/LINE switchable)
• Audiophile-grade NJM8080 op-amp used in PHONO EQ stage
• 2-speed drive offering 33-⅓ and 45 rpm

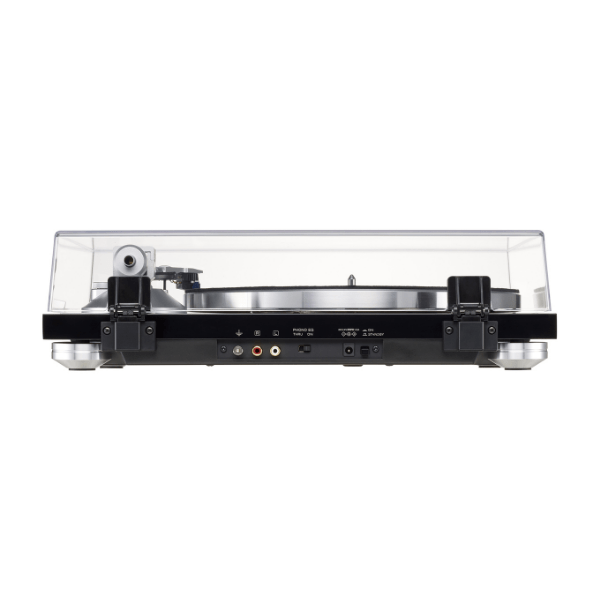

• Gold-plated oxidation-resistant output connectors
• Oyster MM cartridge by SUMIKO
• Shock-absorbing insulating feet
• GND terminal
• RoHS compliant

• Felt Mat
• EP Adapter
• Counter Weight
• Head-shell (SUMIKO Oyster installed)
• Platter
• Dust Cover
• Hinges × 2
• RCA Audio cable with GND terminal
• AC Adapter (GPE036W-24015)
• Owner's Manual (including Warranty Card)
